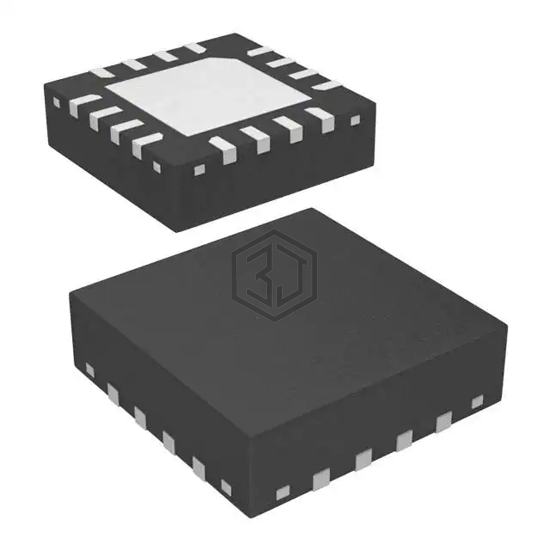

IC MOTOR DRIVER 4.5V-16V 16QFN
MP6505DQ-LF-P is a PMIC - Motor Drivers, Controllers manufactured by Monolithic Power Systems Inc.. IC MOTOR DRIVER 4.5V-16V 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 16V, package / case 16-VFQFN Exposed Pad.
In Stock: 5,589
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 400mA |
| Voltage - Supply | 4.5V ~ 16V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
MP6505DQ-LF-P is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP6505DM-LF | Monolithic Power Systems Inc. | IC MOTOR DRIVER 4.5V-16V 16TSSOP | 100% | View |
| MP6505DM-LF-Z | Monolithic Power Systems Inc. | IC MOTOR DRIVER 4.5V-16V 16TSSOP | 100% | View |
| DRV8601DRBR | Texas Instruments | IC MOTOR DRIVER 2.5V-5.5V 8SON | 79% | View |
| DRV8860PWPR | Texas Instruments | IC MTR DRV UNIPLR 8-38V 16HTSSOP | 72% | View |
| TND512MD-TL-E | Sanyo | EXCELLENT-PERFORMANCE POWER AND | 71% | View |
| FAH4820MPX | Fairchild Semiconductor | BRUSH DC MOTOR CONTROLLER PDSO10 | 65% | View |
Submit your RFQ for MP6505DQ-LF-P and get a quote within 24 hours.
