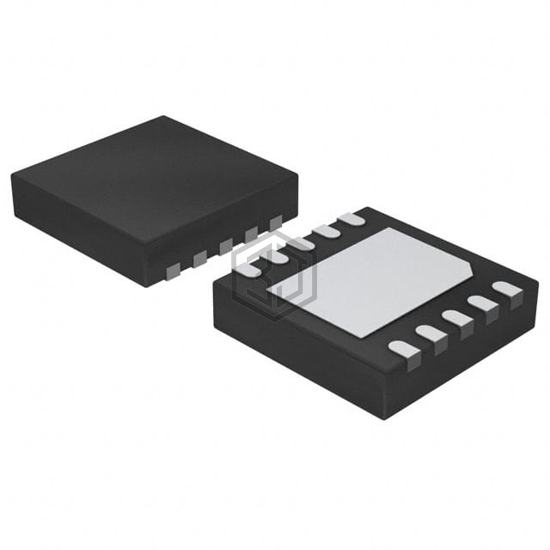

IC GATE DRVR HALF-BRIDGE 10QFN
MP1924HR-LF-P is a PMIC - Gate Drivers manufactured by Monolithic Power Systems Inc.. IC GATE DRVR HALF-BRIDGE 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 16V, package / case 10-VDFN Exposed Pad.
In Stock: 5,135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 16V |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 15ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VDFN Exposed Pad |
| Supplier Device Package | 10-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14E5T-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 89% | View |
| MCP14E3-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 89% | View |
| UCC27211DRMR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8VSON | 88% | View |
| UCC37325DGNR | Texas Instruments | IC GATE DRVR LOW-SIDE 8MSOP | 88% | View |
| ADP3654ARDZ | Analog Devices Inc. | IC MOSFET DVR 4A DUAL HS 8SOIC | 84% | View |
| MAX17602ATA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8TDFN | 75% | View |
Submit your RFQ for MP1924HR-LF-P and get a quote within 24 hours.
