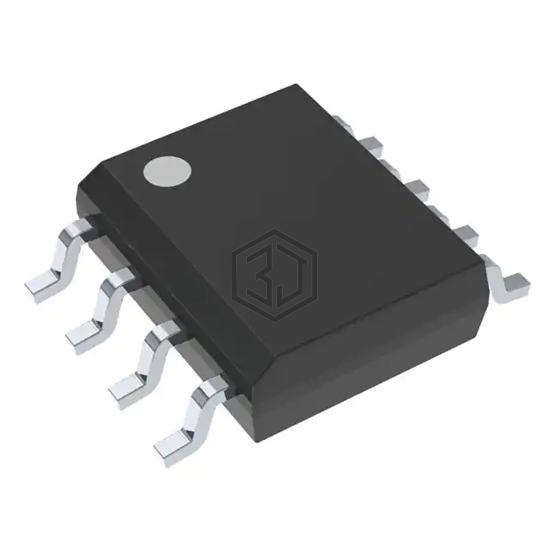

IC GATE DRVR HALF-BRIDGE 8SOIC
MP1924AHS-LF-Z is a PMIC - Gate Drivers manufactured by Monolithic Power Systems Inc.. IC GATE DRVR HALF-BRIDGE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 18V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 9,723
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 115 V |
| Rise / Fall Time (Typ) | 15ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14E4T-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 97% | View |
| MCP14E3T-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 97% | View |
| UCC27423DGNR | Texas Instruments | IC GATE DRVR LOW-SIDE 8MSOP | 95% | View |
| UCC27211AQDDARQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOPWR | 84% | View |
| MAX17600AUA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 84% | View |
| MAX17604AUA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 78% | View |
Submit your RFQ for MP1924AHS-LF-Z and get a quote within 24 hours.
