30V, 2.2MHZ, 2A HALF-BRIDGE GATE

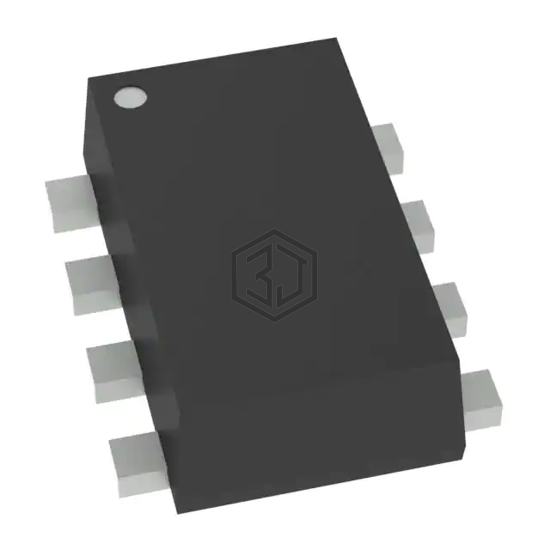

MP1909GTL-P is a PMIC - Gate Drivers manufactured by Monolithic Power Systems Inc.. 30V, 2.2MHZ, 2A HALF-BRIDGE GATE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 12V, package / case SOT-583.
In Stock: 493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 12V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2 V |
| Current - Peak Output (Source, Sink) | 2A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 50 V |
| Rise / Fall Time (Typ) | 10ns, 6ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-583 |
| Supplier Device Package | SOT-583 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP1909GTL-Z | Monolithic Power Systems Inc. | 30V, 2.2MHZ, 2A HALF-BRIDGE GATE | 100% | View |
| TPS2812D | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 92% | View |
| TPS2814PW | Texas Instruments | IC GATE DRVR LOW-SIDE 8TSSOP | 92% | View |
| MCP14628-E/MF | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8DFN | 92% | View |
| TPS2814DR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 92% | View |
| TPS2813PWR | Texas Instruments | IC GATE DRVR LOW-SIDE 8TSSOP | 92% | View |
Submit your RFQ for MP1909GTL-P and get a quote within 24 hours.
