IC OFFLINE SWITCH

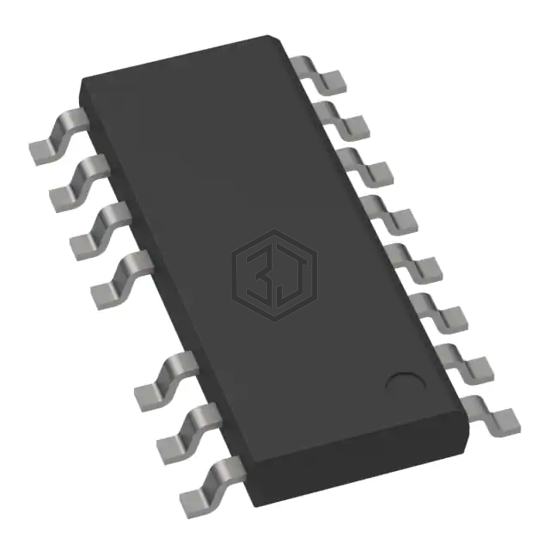

HR1002AGSE-Z is a PMIC - AC DC Converters, Offline Switchers manufactured by Monolithic Power Systems Inc.. IC OFFLINE SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 13V ~ 15.5V, package / case 16-SOIC (0.154", 3.90mm Width), 15 Leads.
In Stock: 2,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 13V ~ 15.5V |
| Duty Cycle | 50% |
| Frequency - Switching | 600kHz |
| Power (Watts) | 1.56 W |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HR1001AGS-Z | Monolithic Power Systems Inc. | IC OFFLINE SWITCH 16SOIC | 95% | View |
| HR1001LGS-Z | Monolithic Power Systems Inc. | IC OFFLINE SWITCH 16SOIC | 95% | View |
| HR1001BGS | Monolithic Power Systems Inc. | IC OFFLINE SWITCH 16SOIC | 95% | View |
| HR1001LGS | Monolithic Power Systems Inc. | ENHANCED LLC CONTROLLER WITH ADA | 95% | View |
| HR1001GS | Monolithic Power Systems Inc. | AC/DC CONVERTERS ENHANCED LLC CO | 95% | View |
| UCC25701PW | Unitrode | IC OFFLINE SW MULT TOP 14TSSOP | 83% | View |
Submit your RFQ for HR1002AGSE-Z and get a quote within 24 hours.
