FULL-FEATURED FLYBACK REGULATOR

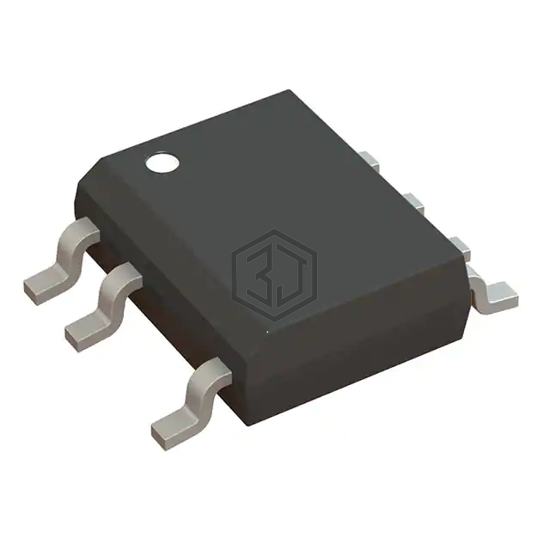

HF500GS-15 is a PMIC - AC DC Converters, Offline Switchers manufactured by Monolithic Power Systems Inc.. FULL-FEATURED FLYBACK REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 12.5V ~ 24V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 3,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 12.5V ~ 24V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz |
| Power (Watts) | 1.5 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7B |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1343ENAAEBBD1R2G | onsemi | HIGH FREQUENCY QUASI-RESONANT FL | 95% | View |
| NCP1342DADBDGD1R2G | onsemi | HIGH FREQUENCY QUASI-RESONANT FL | 95% | View |
| NCP1340B9D1R2G | onsemi | HV QUASI-RESONANT CONTROLLER FEA | 95% | View |
| NCP1343BADBDEAD1R2G | onsemi | IC OFFLINE SWITCH FLYBACK 9SOIC | 94% | View |
| NCP1342BMDCDD1R2G | onsemi | QUASI-RESONANT FLYBACK CONTROLLE | 72% | View |
| NCP1342ENDCEAD1R2G | onsemi | QUASI-RESONANT FLYBACK CONTROLLE | 72% | View |
Submit your RFQ for HF500GS-15 and get a quote within 24 hours.
