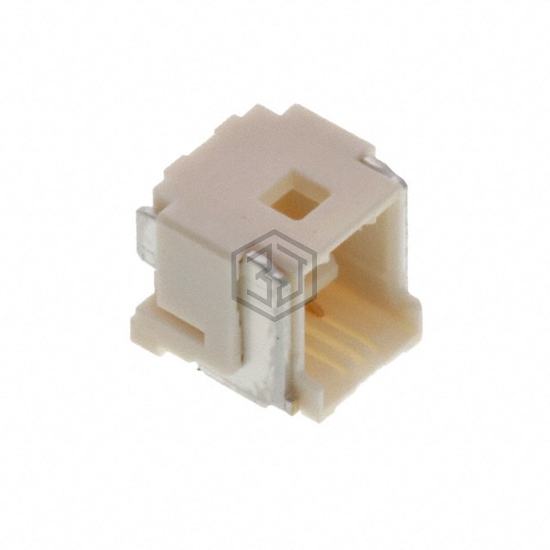

CONN RCPT 2POS 0.059 GOLD SMD
5054050270 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 2POS 0.059 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 100V, current rating (amps) Varies by Wire Gauge.
In Stock: 3,487
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Beige |
| Insulation Height | 0.285" (7.25mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Solder Retention |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 100V |
