0.5 FPC ZIF BTM CONT EMBT PKG 32

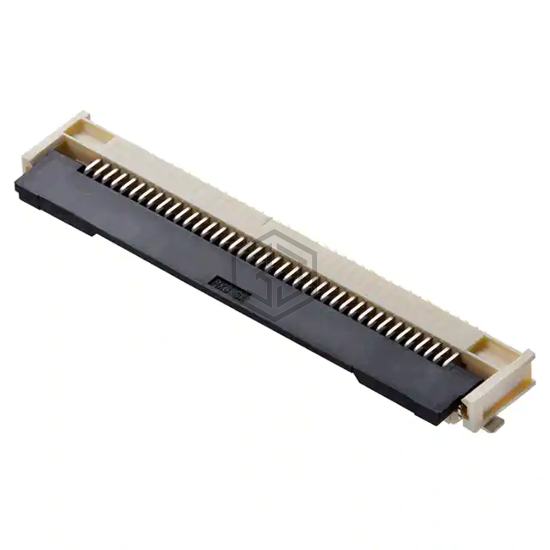

5051103291 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. 0.5 FPC ZIF BTM CONT EMBT PKG 32. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), Glass Filled.
In Stock: 7,121
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 32 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 5051103291 and get a quote within 24 hours.
