CONN RCPT 14P 0.079 TIN SMD R/A

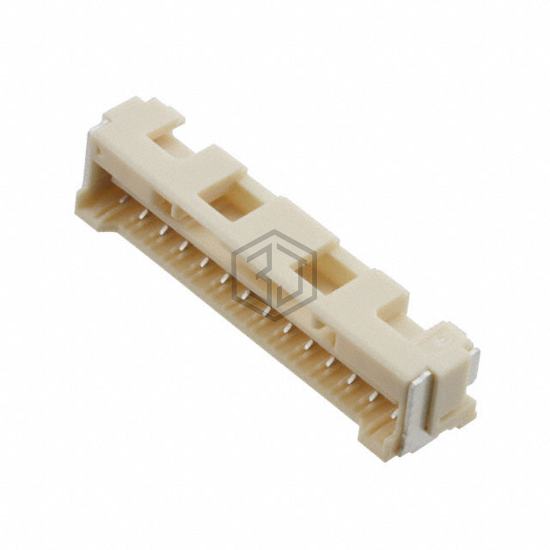

5024941470 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 14P 0.079 TIN SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 105°C, termination Solder, number of positions 14.
In Stock: 1,804
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Insulation Color | Natural |
| Insulation Height | 0.270" (6.86mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place, Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 5024941470 and get a quote within 24 hours.
