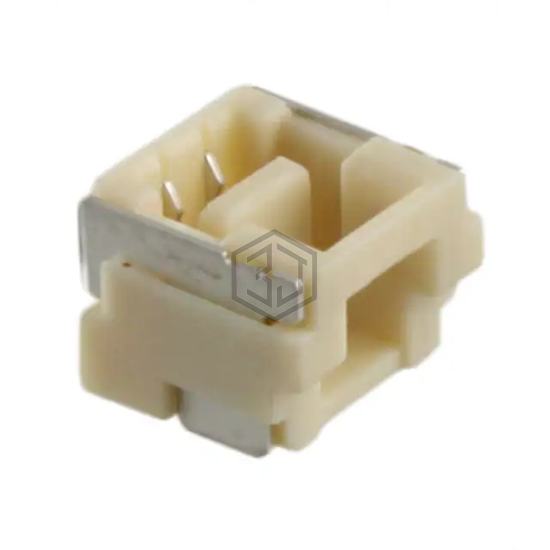

CONN RCPT 2POS 0.049 TIN SMD
5023820270 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 2POS 0.049 TIN SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 50V, current rating (amps) 1A.
In Stock: 36,979
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Insulation Color | Natural |
| Insulation Height | 0.173" (4.40mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Solder Retention |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
Submit your RFQ for 5023820270 and get a quote within 24 hours.
