CONN FFC VERT 45POS 0.50MM SMD

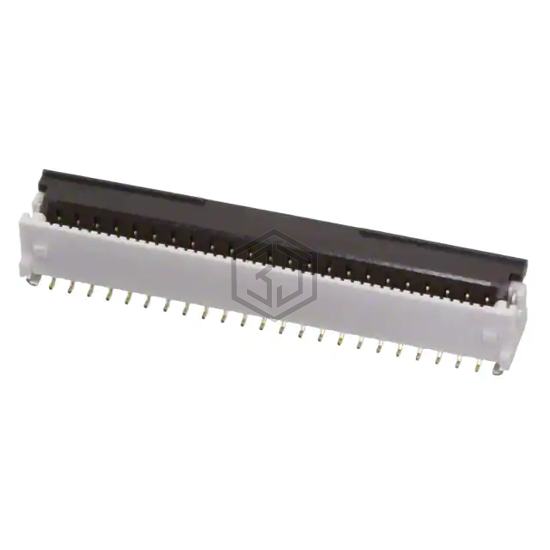

5019514510 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FFC VERT 45POS 0.50MM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), Glass Filled.
In Stock: 350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 45 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.159" (4.04mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight, Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 5019514510 and get a quote within 24 hours.
