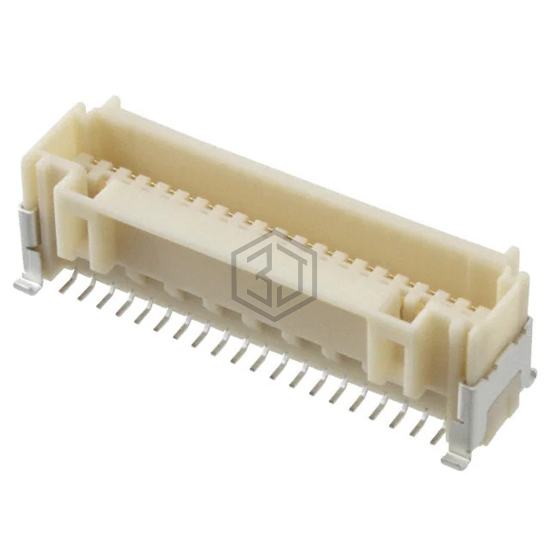

CONN RCPT 40POS 0.049 GOLD SMD
5019314070 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 40POS 0.049 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 50V, current rating (amps) 1A.
In Stock: 6,458
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Insulation Color | Natural |
| Insulation Height | 0.346" (8.80mm) |
| Contact Length - Post | - |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place, Solder Retention |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
Submit your RFQ for 5019314070 and get a quote within 24 hours.
