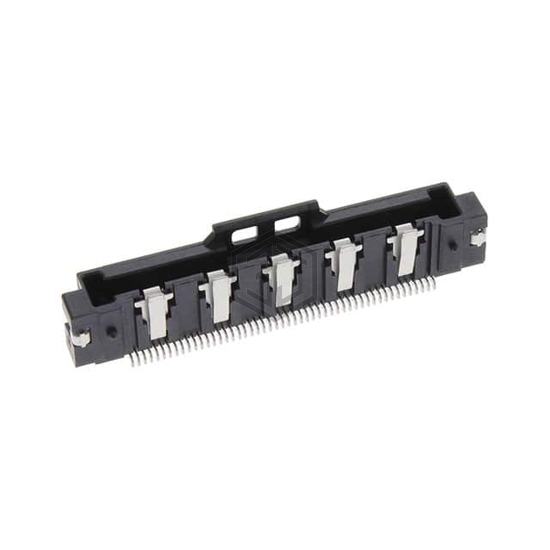

CONN FFC BOTTOM 50POS 0.50MM R/A
5018645081 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FFC BOTTOM 50POS 0.50MM R/A. Key specifications: mounting type Surface Mount, Right Angle, housing material Liquid Crystal Polymer (LCP), Glass Filled, termination Solder, number of positions 50.
In Stock: 2,793
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 50 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.191" (4.85mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Notched |
| Contact Material | Copper Alloy |
| Contact Finish | Tin Bismuth |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | - |
| Features | Board Guide, Solder Retention |
| Voltage Rating | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 5018645081 and get a quote within 24 hours.
