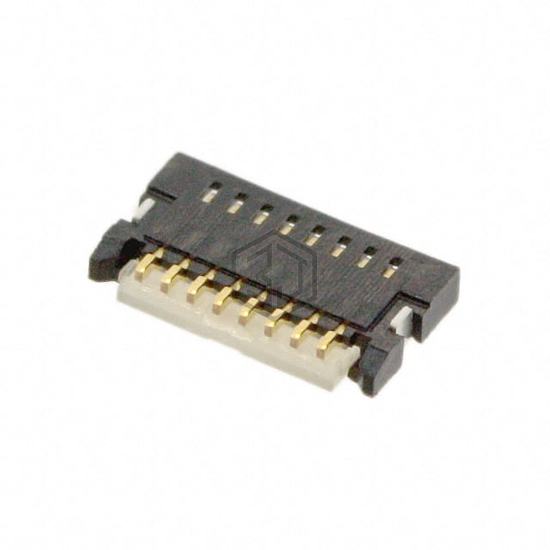

CONN FPC BOTTOM 8POS 0.50MM R/A
5014610812 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FPC BOTTOM 8POS 0.50MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Polymer, Glass Filled.
In Stock: 726
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 8 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.12mm |
| Height Above Board | 0.031" (0.80mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Notched |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Polymer, Glass Filled |
| Actuator Material | Polymer, Glass Filled |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 HB |
Submit your RFQ for 5014610812 and get a quote within 24 hours.
