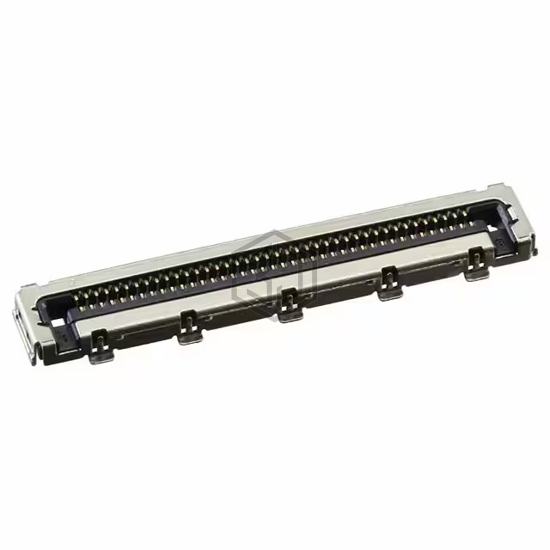

CONN RCPT 40POS 0.016 GOLD SMD
5010834010 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 40POS 0.016 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 75°C, voltage rating 30V, current rating (amps) 0.2A per Contact.
In Stock: 606
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.016" (0.40mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.049" (1.25mm) |
| Contact Length - Post | - |
| Operating Temperature | -30°C ~ 75°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Shielded, Solder Retention |
| Current Rating (Amps) | 0.2A per Contact |
| Voltage Rating | 30V |
Submit your RFQ for 5010834010 and get a quote within 24 hours.
