2.0 ST ASSY 8CKT ETP BK CV_GW PO

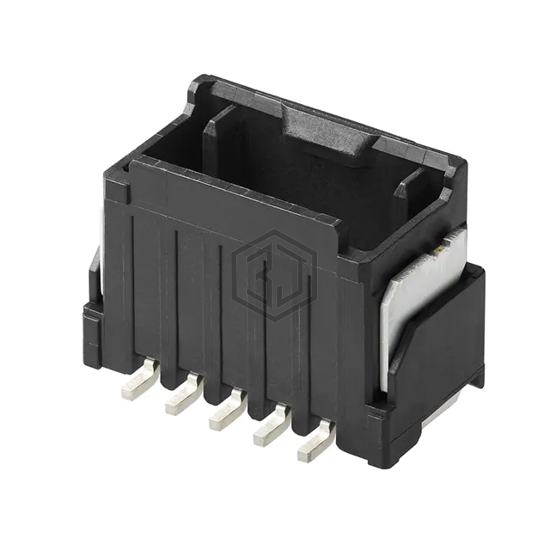

2170630087 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. 2.0 ST ASSY 8CKT ETP BK CV_GW PO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 250V, contact material Brass.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin-Bismuth |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin-Bismuth |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250V |
Submit your RFQ for 2170630087 and get a quote within 24 hours.
