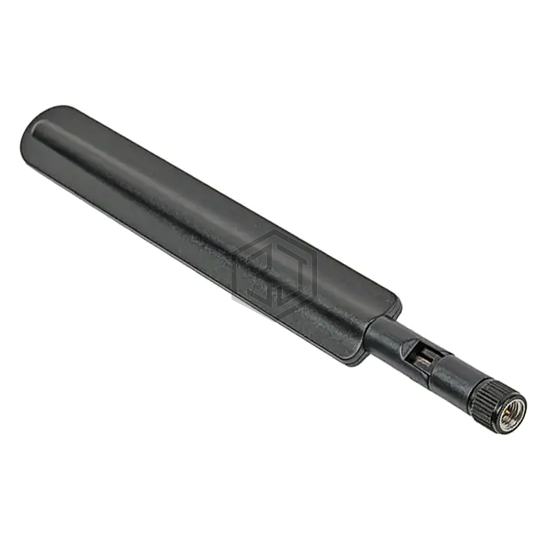

2144290001 - Molex - RF Antennas

2144290001

Molex

5G EXTERNAL ANTENNA_HINGED_B_M

2144290001 is a RF Antennas manufactured by Molex. 5G EXTERNAL ANTENNA_HINGED_B_M. Key specifications: mounting type Connector Mount, termination SMA Male, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz.

In Stock: 355

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular
Frequency GroupWide Band
Frequency (Center/Band)829MHz, 2.2GHz, 3.75GHz, 4.7GHz
Frequency Range698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz
Antenna TypeBlade, Tilt
Number of Bands4
VSWR-
Return Loss-10dB, -5dB
Gain1.6dBi, 5.5dBi, 3.6dBi, 3.5dBi
Power - Max-
Features-
TerminationSMA Male
Ingress Protection-
Mounting TypeConnector Mount
Height (Max)6.752" (171.50mm)
ApplicationsLTE

Frequently Asked Questions

2144290001 is a RF Antennas manufactured by Molex. 5G EXTERNAL ANTENNA_HINGED_B_M

The mounting type of 2144290001 is Connector Mount.

The termination type of 2144290001 is SMA Male.

The frequency of 2144290001 is 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz.
