DRVT 1.5 SMT AU0.76 ETP 32P NAT

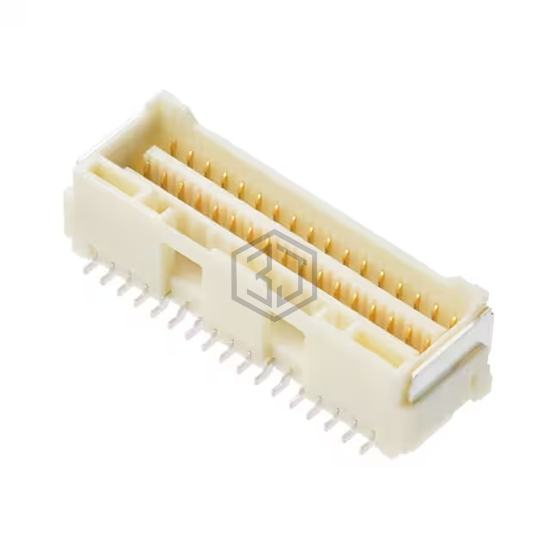

2132273270 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. DRVT 1.5 SMT AU0.76 ETP 32P NAT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 100VAC/DC, current rating (amps) Varies by Wire Gauge.
In Stock: 1,235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Natural |
| Insulation Height | 0.346" (8.80mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place, Solder Retention |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 100VAC/DC |
Submit your RFQ for 2132273270 and get a quote within 24 hours.
