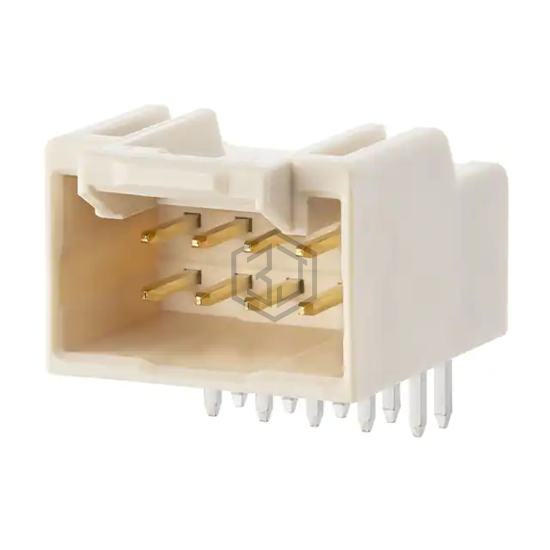

IGRID PLUG TH HDR RA GF 10CKT
2086591040 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. IGRID PLUG TH HDR RA GF 10CKT. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 250VAC/DC, contact material Brass.
In Stock: 856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.327" (8.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC/DC |
Submit your RFQ for 2086591040 and get a quote within 24 hours.
