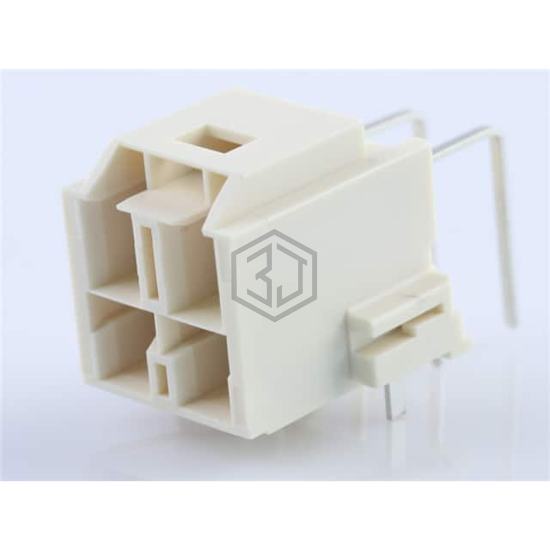

CP65 WTB HDR RA TH 0 NAT 4CKT
2035551214 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CP65 WTB HDR RA TH 0 NAT 4CKT. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 600VAC/DC, contact material Copper Alloy.
In Stock: 777
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.256" (6.50mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.256" (6.50mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 0.598" (15.19mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC/DC |
Submit your RFQ for 2035551214 and get a quote within 24 hours.
