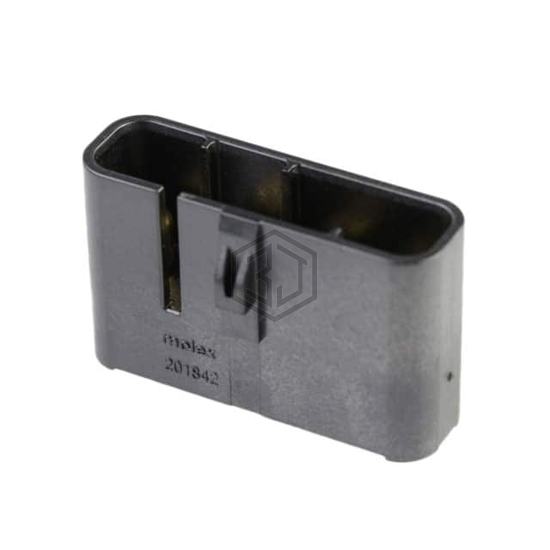

CONN HEADER VERT 4POS 7.4MM
2018421040 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 4POS 7.4MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage rating 1200V, contact material Copper Alloy.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.291" (7.40mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.132" (3.35mm) |
| Overall Contact Length | - |
| Insulation Height | 0.776" (19.70mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyetherimide (PEI) |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 150°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 1200V |
