1.0 FPC ZIF BTM CONT EMBT

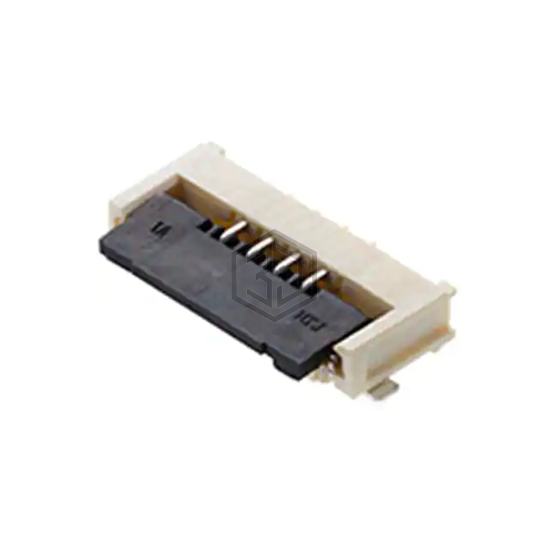

2005280051 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. 1.0 FPC ZIF BTM CONT EMBT. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 150°C, voltage rating 125V, housing material Liquid Crystal Polymer (LCP), Glass Filled.
In Stock: 17,853
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 5 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight, Tabbed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 125V |
| Operating Temperature | -40°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 2005280051 and get a quote within 24 hours.
