STAK50 ASSY V HDR SOLDER 2

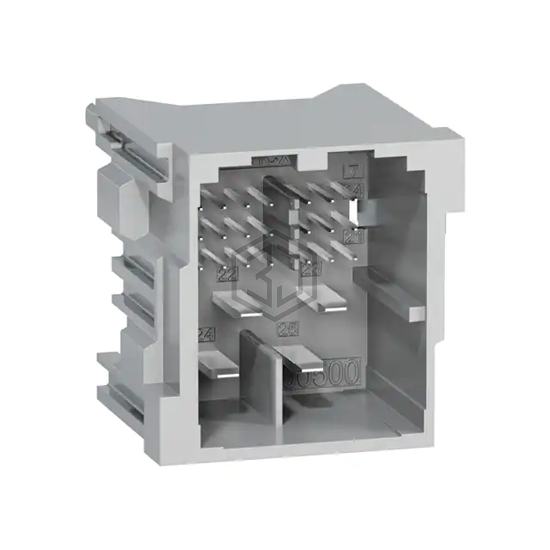

2005010252 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. STAK50 ASSY V HDR SOLDER 2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating 14VDC, contact material Copper Alloy.
In Stock: 1,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | - |
| Number of Positions | 25 |
| Number of Rows | 5 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Contact Length - Mating | - |
| Contact Length - Post | 0.102" (2.60mm) |
| Overall Contact Length | - |
| Insulation Height | 0.949" (24.10mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | 3A, 23A |
| Voltage Rating | 14VDC |
Submit your RFQ for 2005010252 and get a quote within 24 hours.
