0.5 ONE-TOUCH RA 30P GND

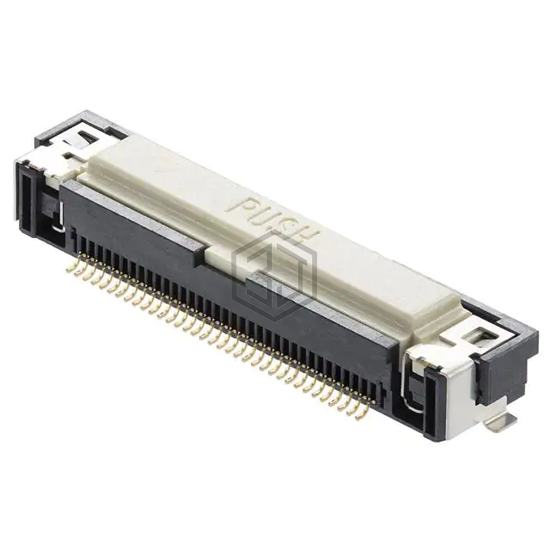

2004850630 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. 0.5 ONE-TOUCH RA 30P GND. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), Glass Filled.
In Stock: 2,984
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 30 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | 0.176" (4.46mm) |
| Locking Feature | Auto Lock, Push Button Release |
| Cable End Type | Notched |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 2004850630 and get a quote within 24 hours.
