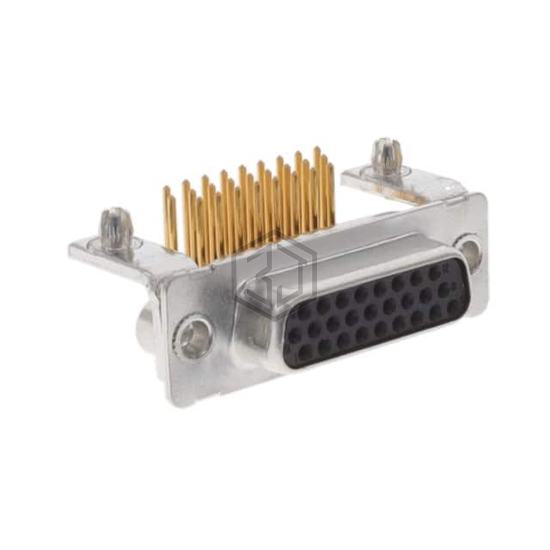

CONN D-SUB HD RCPT 26P R/A SLDR
1731130157 is a D-Sub Connectors manufactured by Molex. CONN D-SUB HD RCPT 26P R/A SLDR. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 5A, termination Solder, ingress protection IP20.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5µin (0.80µm) |
| Ingress Protection | IP20 |
| Material Flammability Rating | - |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.314" (7.98mm) |
| Features | Board Lock, Mounting Brackets |
Submit your RFQ for 1731130157 and get a quote within 24 hours.
