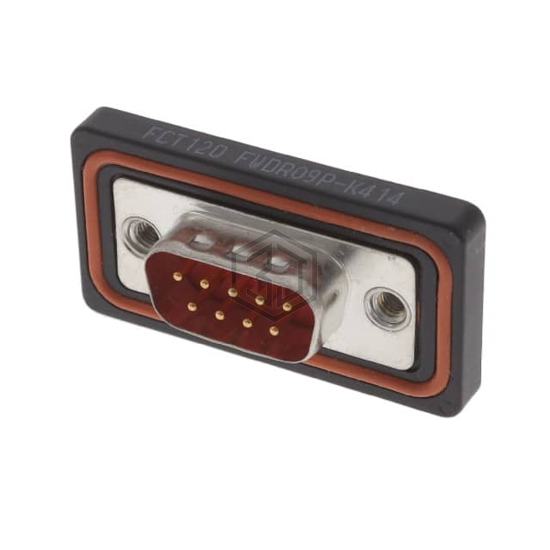

FCT DSUB SDR PLG 09 PN RMNT
1731100151 is a D-Sub Connectors manufactured by Molex. FCT DSUB SDR PLG 09 PN RMNT. Key specifications: mounting type Panel Mount, current rating (amps) 5A, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (M3) |
| Termination | Solder Cup |
| Primary Material | Metal |
| Shell Material, Finish | Brass, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 31.0µin (0.79µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | - |
| Features | Grounding Indents |
