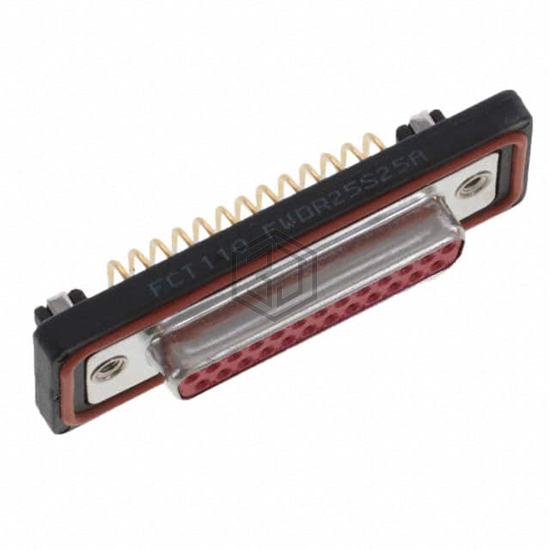

CONN D-SUB RCPT 25POS R/A SLDR
1727040056 is a D-Sub Connectors manufactured by Molex. CONN D-SUB RCPT 25POS R/A SLDR. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 5A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Brass, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.228" (5.80mm) |
| Features | Board Lock |
