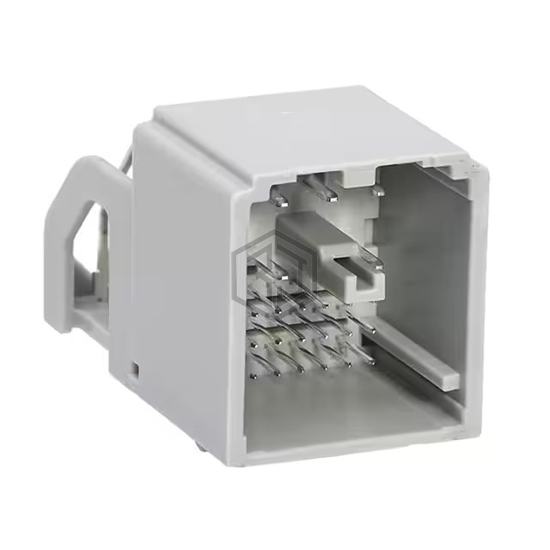

AK50 HYB HDR ASSY 28 CKT
1600136601 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. AK50 HYB HDR ASSY 28 CKT. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 500VDC, contact material Copper Alloy.
In Stock: 675
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | - |
| Number of Positions | 28 |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.098" (2.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.902" (22.90mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 HB |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | 500VDC |
Submit your RFQ for 1600136601 and get a quote within 24 hours.
