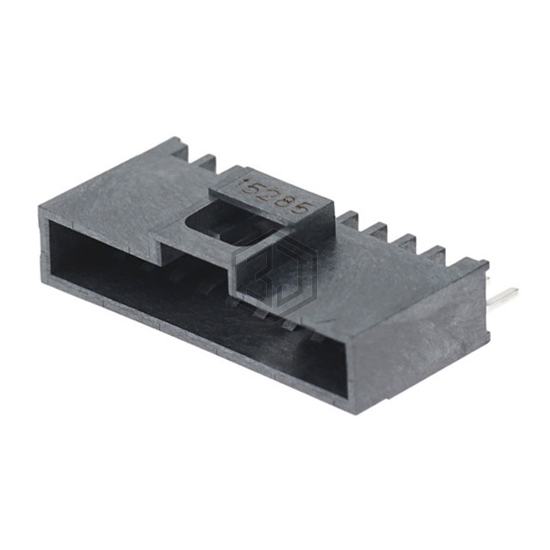

CONN HEADER SMD R/A 10POS 2MM
1510641010 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER SMD R/A 10POS 2MM. Key specifications: mounting type Surface Mount, Right Angle, contact material Copper Alloy, termination Solder, number of positions 10.
In Stock: 424
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.263" (6.67mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 98.4µin (2.50µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
