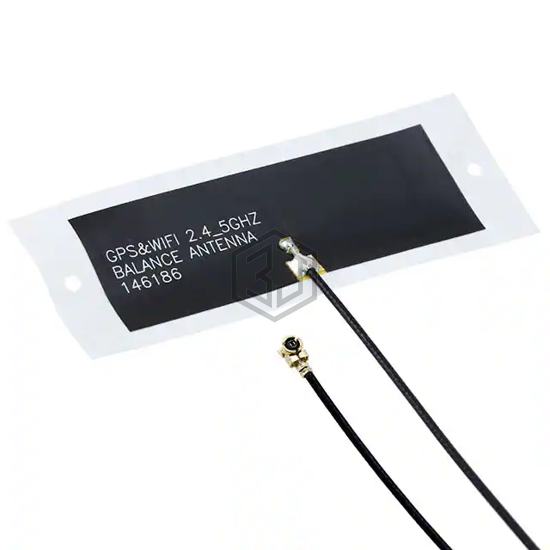

RF ANT 1.561/1.575GHZ FLAT 100MM
1461860100 is a RF Antennas manufactured by Molex. RF ANT 1.561/1.575GHZ FLAT 100MM. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz.
In Stock: 9,714
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz |
| Frequency Range | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 5 |
| VSWR | - |
| Return Loss | -10dB |
| Gain | 3dBi, 4dBi, 4.7dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Applications | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
Submit your RFQ for 1461860100 and get a quote within 24 hours.
