1461798011
RX 1 COIL 1 LAYER 2.6UH

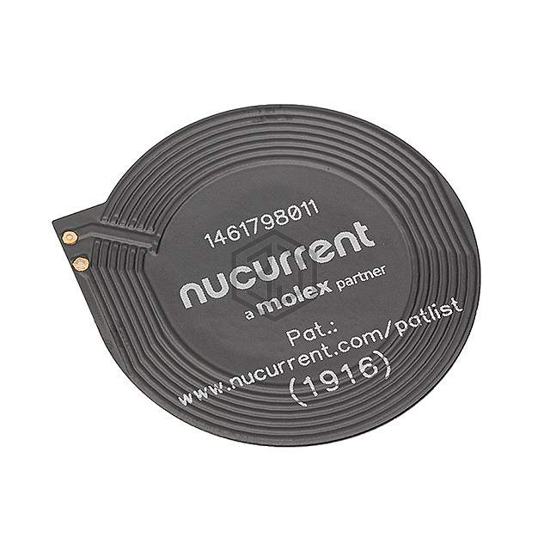

1461798011 is a Wireless Charging Coils manufactured by Molex. RX 1 COIL 1 LAYER 2.6UH. Key specifications: size / dimension 1.04" Dia x 0.02" H (26.5mm x 0.5mm), tolerance ±2%.
In Stock: 4,387
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 2.6µH |
| Tolerance | ±2% |
| DC Resistance (DCR) | 245mOhm |
| Q @ Freq | 90 @ 6.78MHz |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | - |
| Size / Dimension | 1.04" Dia x 0.02" H (26.5mm x 0.5mm) |
Frequently Asked Questions
1461798011 is a Wireless Charging Coils manufactured by Molex. RX 1 COIL 1 LAYER 2.6UH
The size of 1461798011 is 1.04" Dia x 0.02" H (26.5mm x 0.5mm).
The tolerance of 1461798011 is ±2%.
Yes, 1461798011 is listed as Obsolete. Consider requesting a quote for alternative parts.
