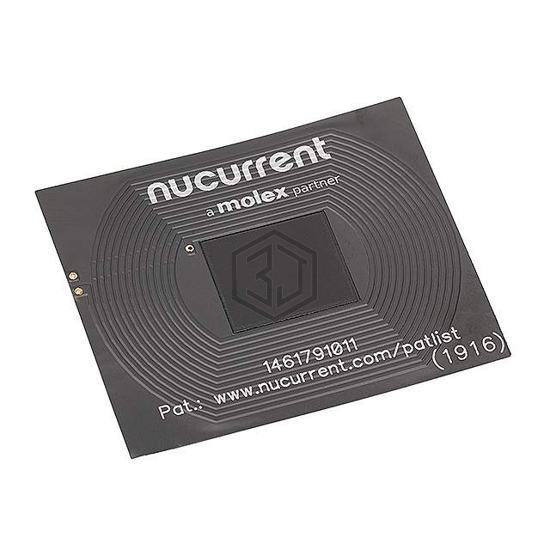

1461791011
RX 2 COIL 1 LAYER 9.9UH
1461791011 is a Wireless Charging Coils manufactured by Molex. RX 2 COIL 1 LAYER 9.9UH. Key specifications: size / dimension 1.58" L x 1.85" W x 0.02" H (40.0mm x 47.0mm x 0.5mm), tolerance ±2%.
In Stock: 96
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Receiver |
| Type | 2 Coil, 1 Layer |
| Inductance | 9.9µH |
| Tolerance | ±2% |
| DC Resistance (DCR) | 390mOhm |
| Q @ Freq | 23 @ 200kHz |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | - |
| Size / Dimension | 1.58" L x 1.85" W x 0.02" H (40.0mm x 47.0mm x 0.5mm) |
Frequently Asked Questions
1461791011 is a Wireless Charging Coils manufactured by Molex. RX 2 COIL 1 LAYER 9.9UH
The size of 1461791011 is 1.58" L x 1.85" W x 0.02" H (40.0mm x 47.0mm x 0.5mm).
The tolerance of 1461791011 is ±2%.
Yes, 1461791011 is listed as Obsolete. Consider requesting a quote for alternative parts.
