1461531300

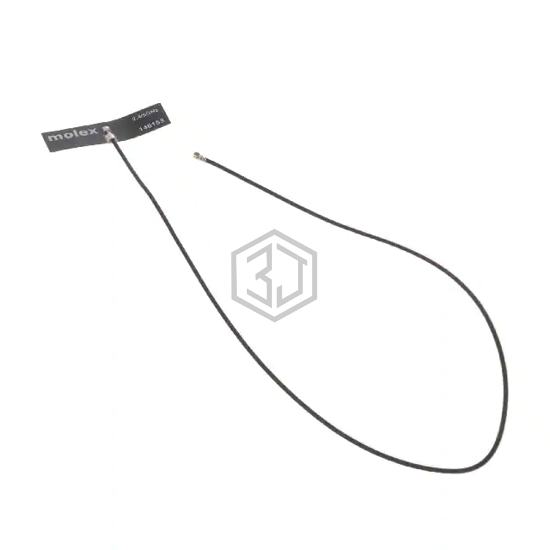

RF ANT 2.4417/5.415GHZ PCB 300MM
1461531300 is a RF Antennas manufactured by Molex. RF ANT 2.4417/5.415GHZ PCB 300MM. Key specifications: mounting type Adhesive, termination IPEX MHF4L, frequency range 2.4GHz, 5GHz.
In Stock: 564
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4417GHz, 5.415GHz |
| Frequency Range | 2.4GHz, 5GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 2 |
| VSWR | - |
| Return Loss | -10dB |
| Gain | 2.4dBi, 3.2dBi |
| Power - Max | - |
| Features | Cable - 300mm |
| Termination | IPEX MHF4L |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Applications | Wi-Fi, Zigbee™ |
Frequently Asked Questions
1461531300 is a RF Antennas manufactured by Molex. RF ANT 2.4417/5.415GHZ PCB 300MM
The mounting type of 1461531300 is Adhesive.
The termination type of 1461531300 is IPEX MHF4L.
The frequency of 1461531300 is 2.4GHz, 5GHz.
