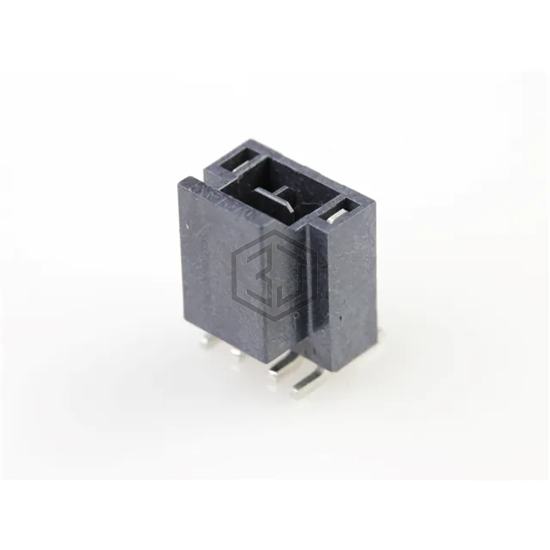

CONN HEADER SMD 2POS 2.5MM
1054311202 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER SMD 2POS 2.5MM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 115°C, voltage rating 250VAC, contact material Brass.
In Stock: 3,461
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.382" (9.70mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -40°C ~ 115°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 4A |
| Voltage Rating | 250VAC |
Submit your RFQ for 1054311202 and get a quote within 24 hours.
