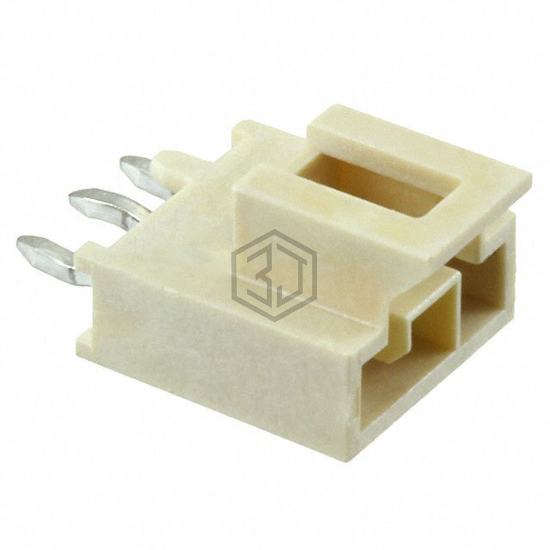

CONN HEADER VERT 3POS 2.5MM
1053092303 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 3POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250V, contact material Brass.
In Stock: 462
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.356" (9.05mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | 250V |
Submit your RFQ for 1053092303 and get a quote within 24 hours.
