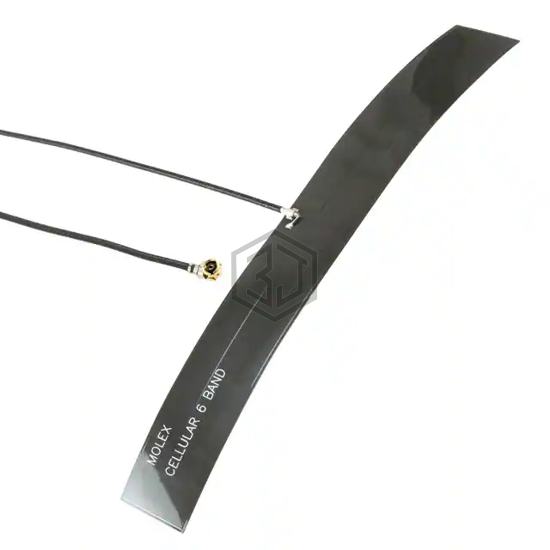

RF ANT 850MHZ/900MHZ FLAT 200MM
1052630003 is a RF Antennas manufactured by Molex. RF ANT 850MHZ/900MHZ FLAT 200MM. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz.
In Stock: 2,151
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | -7.5dB, -8dB, -8.5dB, -8.8dB, -9dB, -12dB |
| Gain | 1.3dBi, 1.7dBi, 2dBi, 2.2dBi, 3dBi |
| Power - Max | 2 W |
| Features | Cable - 200mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Applications | GSM, LTE, UMTS |
