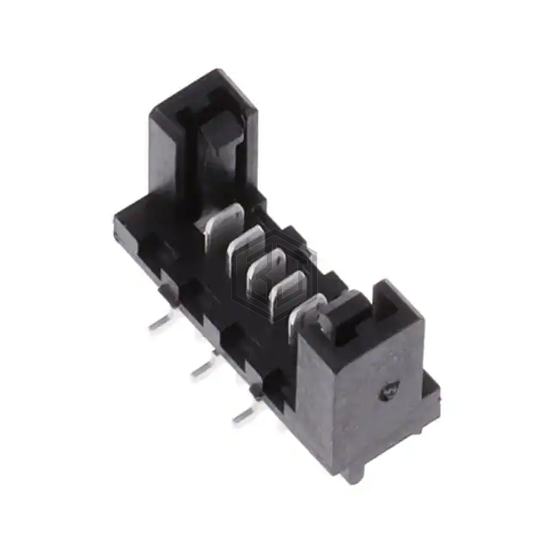

CONN HEADER SMD 6POS 1.27MM
0908160206 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER SMD 6POS 1.27MM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 250V, contact material Brass.
In Stock: 3,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | 0.083" (2.10mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.333" (8.45mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyphthalamide (PPA), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 HB |
| Insulation Color | Black |
| Current Rating (Amps) | 1.2A |
| Voltage Rating | 250V |
