CONN HEADER SMD 16POS 1.27MM

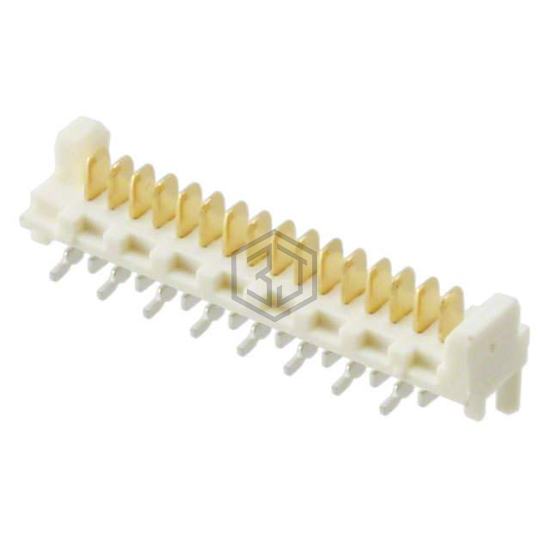

0908143816 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER SMD 16POS 1.27MM. Key specifications: mounting type Surface Mount, contact material Cartridge Brass, termination Solder, number of positions 16.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.085" (2.15mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.161" (4.10mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Palladium-Nickel |
| Contact Finish Thickness - Mating | 24.0µin (0.61µm) |
| Contact Finish - Post | Tin |
| Contact Material | Cartridge Brass |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0908143816 and get a quote within 24 hours.
