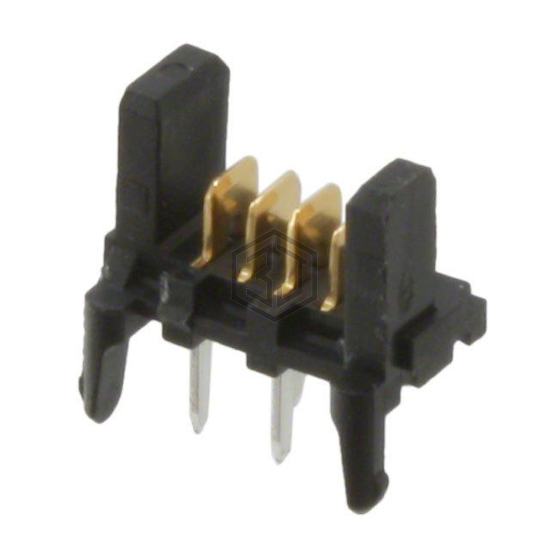

CONN HEADER VERT 4POS 1.27MM
0903257004 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 4POS 1.27MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250V, contact material Brass.
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.252" (6.40mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Palladium-Nickel |
| Contact Finish Thickness - Mating | 24.0µin (0.61µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.2A |
| Voltage Rating | 250V |
Submit your RFQ for 0903257004 and get a quote within 24 hours.
