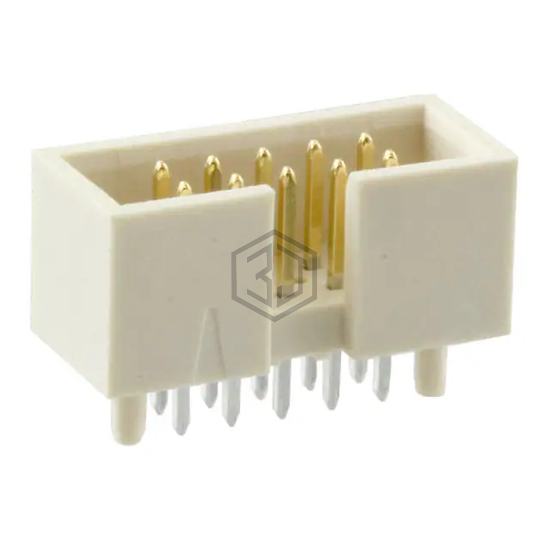

CONN HEADER VERT 10POS 2.54MM
0878341011 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 10POS 2.54MM. Key specifications: mounting type Through Hole, contact material Copper Alloy, termination Solder, number of positions 10.
In Stock: 12,953
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.135" (3.43mm) |
| Overall Contact Length | 0.490" (12.45mm) |
| Insulation Height | 0.365" (9.27mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.11µin (0.130µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | Board Guide, Keying Slot |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0878341011 and get a quote within 24 hours.
