CONN HEADER R/A 12POS 2MM

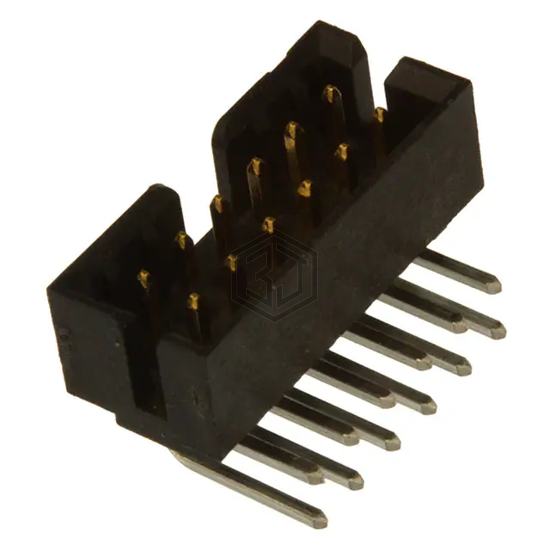

0878331220 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER R/A 12POS 2MM. Key specifications: mounting type Through Hole, Right Angle, contact material Phosphor Bronze, termination Solder, number of positions 12.
In Stock: 20,262
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | 0.085" (2.16mm) |
| Overall Contact Length | - |
| Insulation Height | 0.248" (6.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Keying Slot |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0878331220 and get a quote within 24 hours.
