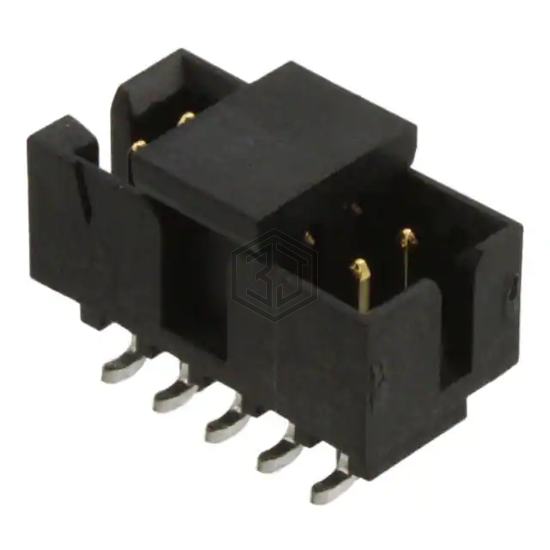

CONN HEADER SMD 10POS 2MM
0878321014 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER SMD 10POS 2MM. Key specifications: mounting type Surface Mount, contact material Phosphor Bronze, termination Solder, number of positions 10.
In Stock: 15,795
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.252" (6.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Keying Slot, Pick and Place |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0878321014 and get a quote within 24 hours.
