CONN HEADER R/A 14POS 2MM

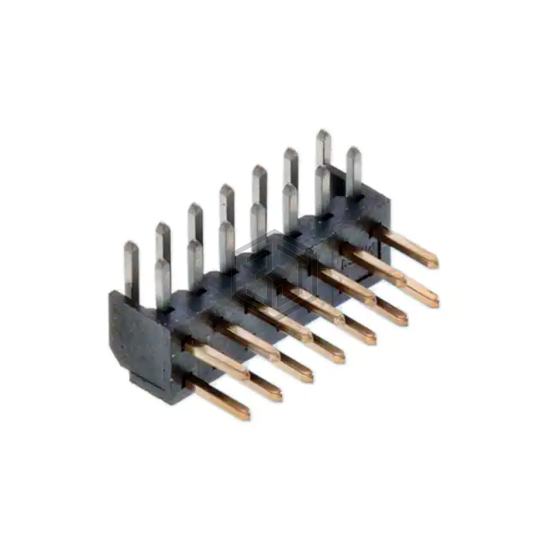

0877601416 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER R/A 14POS 2MM. Key specifications: mounting type Through Hole, Right Angle, contact material Phosphor Bronze, termination Solder, number of positions 14.
In Stock: 13,026
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.102" (2.60mm) |
| Overall Contact Length | - |
| Insulation Height | 0.169" (4.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0877601416 and get a quote within 24 hours.
