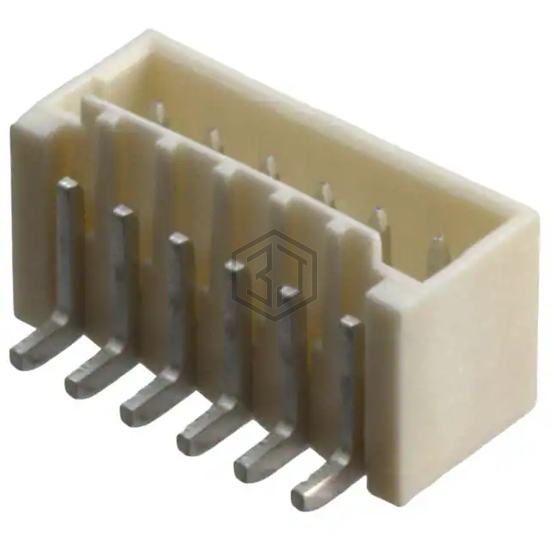

CONN HEADER SMD 6POS 1.5MM
0874370673 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER SMD 6POS 1.5MM. Key specifications: mounting type Surface Mount, contact material Brass Alloy, termination Solder, number of positions 6.
In Stock: 30,881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.106" (2.70mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.199" (5.05mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass Alloy |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Pick and Place |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | - |
| Voltage Rating | - |
