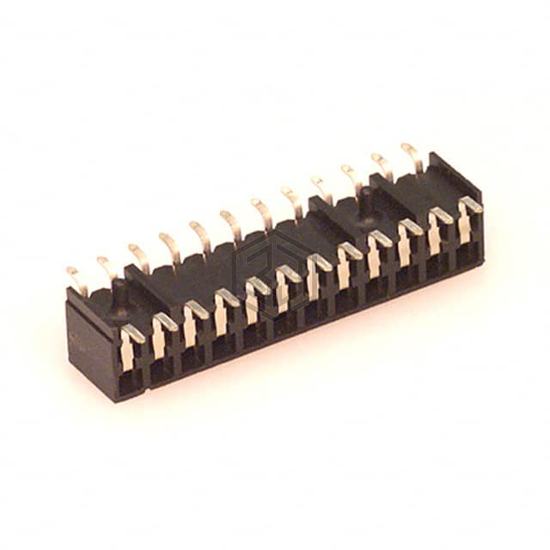

CONN RCPT 24P 0.079 GOLD SMD R/A
0873682424 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 24P 0.079 GOLD SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, voltage rating 125VAC, current rating (amps) 1A.
In Stock: 342
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Insulation Color | Black |
| Insulation Height | 0.193" (4.90mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 1A |
| Voltage Rating | 125VAC |
Submit your RFQ for 0873682424 and get a quote within 24 hours.
