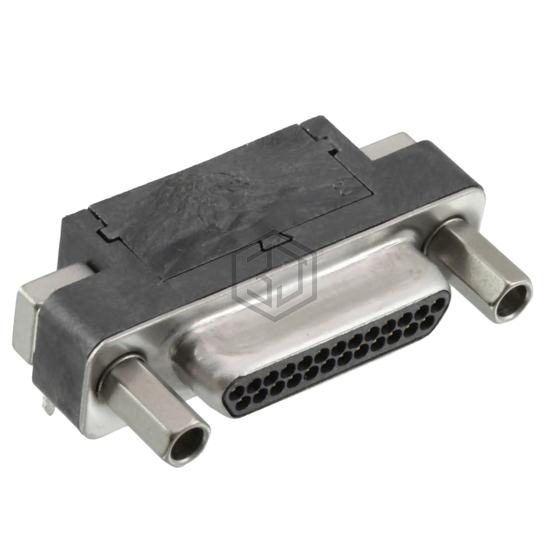

CONN MICRO-D PLUG 25POS R/A SLDR
0836149012 is a D-Sub Connectors manufactured by Molex. CONN MICRO-D PLUG 25POS R/A SLDR. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 1A, termination Solder, number of positions 25.
In Stock: 3,528
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Type, Micro-D |
| Connector Type | Plug, Male Pins |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Backset Spacing | 0.267" (6.78mm) |
| Features | Board Lock, Shielded |
Submit your RFQ for 0836149012 and get a quote within 24 hours.
