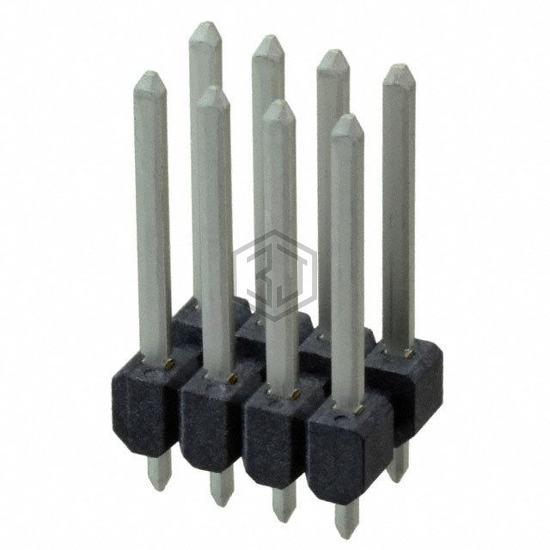

CONN HEADER VERT 8POS 3.5MM
0757575141 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 8POS 3.5MM. Key specifications: mounting type Through Hole, contact material Cartridge Brass, termination Solder, number of positions 8.
In Stock: 6,982
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Blade |
| Pitch - Mating | 0.138" (3.50mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.236" (6.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.633" (16.09mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | 0.931" (23.64mm) |
| Insulation Height | 0.177" (4.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Cartridge Brass |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
