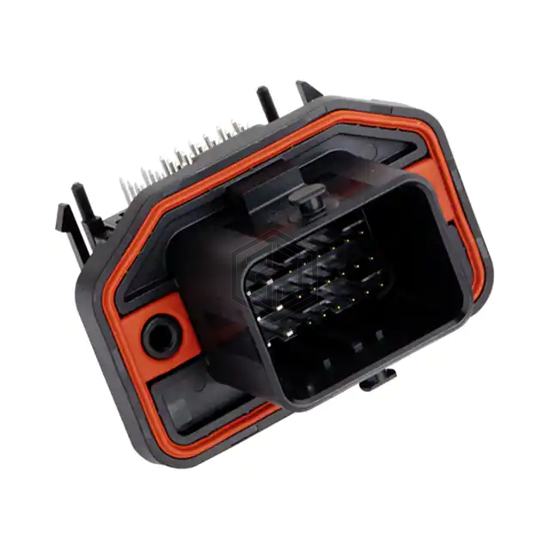

32CKT RA S CMC HEADER BLK
0643341001 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. 32CKT RA S CMC HEADER BLK. Key specifications: mounting type Board Edge, Through Hole, Right Angle, operating temperature -40°C ~ 125°C, voltage rating 14VDC, current rating (amps) 12A per Contact.
In Stock: 603
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 32 |
| Number of Rows | 4 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.974" (24.75mm) |
| Contact Shape | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide, Board Lock, Mounting Flange |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 12A per Contact |
| Voltage Rating | 14VDC |
Submit your RFQ for 0643341001 and get a quote within 24 hours.
