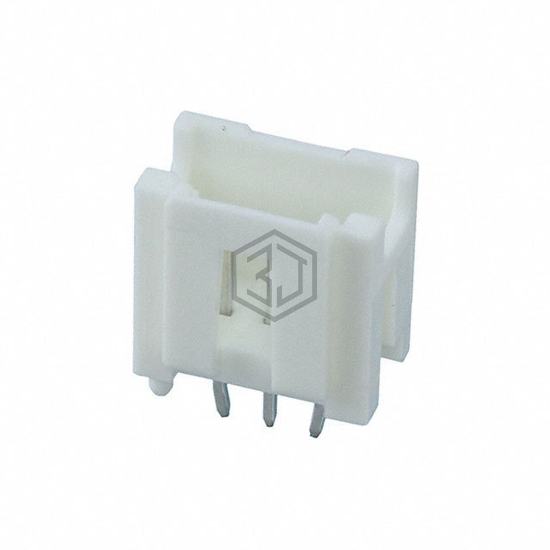

CONN HEADER VERT 3POS 2MM
0559320310 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 3POS 2MM. Key specifications: mounting type Through Hole, termination Kinked Pin, Solder, number of positions 3, connector type Header.
In Stock: 22,394
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.144" (3.66mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | 0.360" (9.15mm) |
| Insulation Height | 0.384" (9.75mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0559320310 and get a quote within 24 hours.
