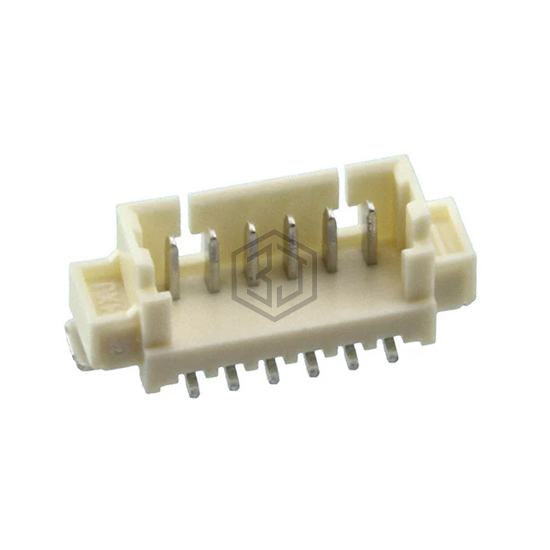

CONN HEADER SMD 6POS 1.25MM
0533980671 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER SMD 6POS 1.25MM. Key specifications: mounting type Surface Mount, contact material Phosphor Bronze, termination Solder, number of positions 6.
In Stock: 73,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.185" (4.70mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
